KRIS Big River: Chart Page

The chart on this page can not be modified, as it can in the CD version of the KRIS database. Data can be downloaded (see bottom of page).

Area South Fork Big River
Topic Habitat: Embeddedness Ratings for All Daugherty Creek Streams

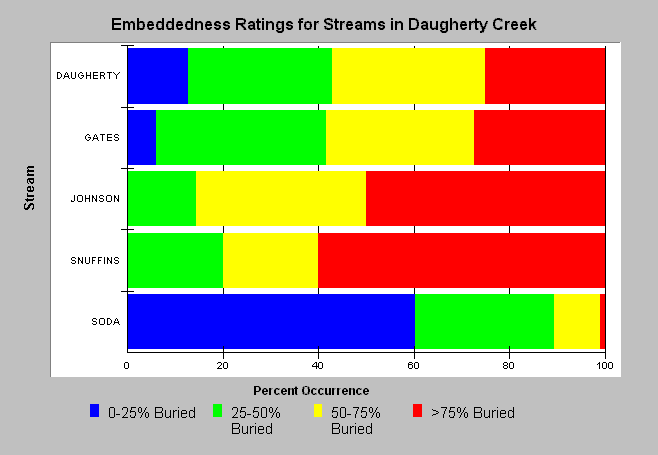

Caption:  The above chart illustrates results of pool tail embeddedness ratings conducted by CDFG during stream habitat surveys in Daugherty Creek from 1993 to 1997. Embeddedness was visually rated at each pool tail to describe the depth to which gravel or cobbles is buried in fine sediment. Rating 1 describes a relatively low level of embeddedness (0-25% buried) and optimum conditions for spawning and incubation of salmonids. Rating 4 describes very high levels of embeddedness (75-100% buried). Data are provided by California Department of Fish and Game, Sacramento. Click on Info Links for more information.


To learn more about this topic click here .
To view the table with the chart's data, click Chart Table web page.
To download the table with the chart's data, click dfg_dc_hab.dbf (size 3,367 bytes) .
To see meta information about the data table used for this topic click here
To view the table with the chart's source data, click Source Table web page.
To download the table with the chart's source data, click habraw_big.dbf (size 5,051,928 bytes)
