Area	South Fork Garcia
Topic	Sediment: Little SF Garcia - Gravel Permeability, MRC 2000

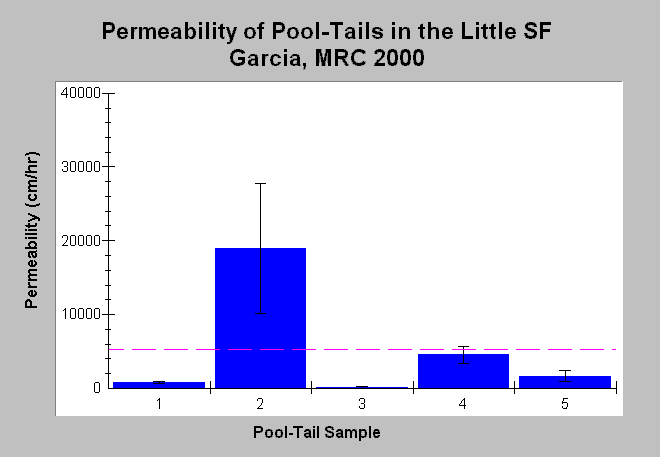

Caption:  This chart shows mean pool-tail gravel permeabilities in the Little South Fork Garcia. Whiskers show one standard error about the mean. Pool-tail permeabilities range from very high to very low. The average permeability for the stream study segment was approximately 5000 cm/hr (pink line), but values ranged as low as 155 cm/hr. Data were collected by the Mendocino Redwood Company in 2000 as part of their long-term channel monitoring program. See InfoLinks for more information.

---

To learn more about this topic click Info Links .
To view additional information (data source, aquisition date etc.) about this page, click Metadata .
To view the table with the chart's data, click Chart Table web page.
To download the table with the chart's data, click sed_permability_little_sfgarcia_mrc_2000.db (size 4,096 bytes) .
To view the table with the chart's source data, click Source Table web page.
To download the table with the chart's source data, click sed_permability_garcia_mrc_2000.dbf (size 13,192 bytes)
