KRIS Ten Mile: Picture Page

Area Basinwide/General
Topic Sediment: V* for Ten Mile and Nearby Streams 1992


bigriv_knopp.jpg 151K  Click on image to enlarge (151K).

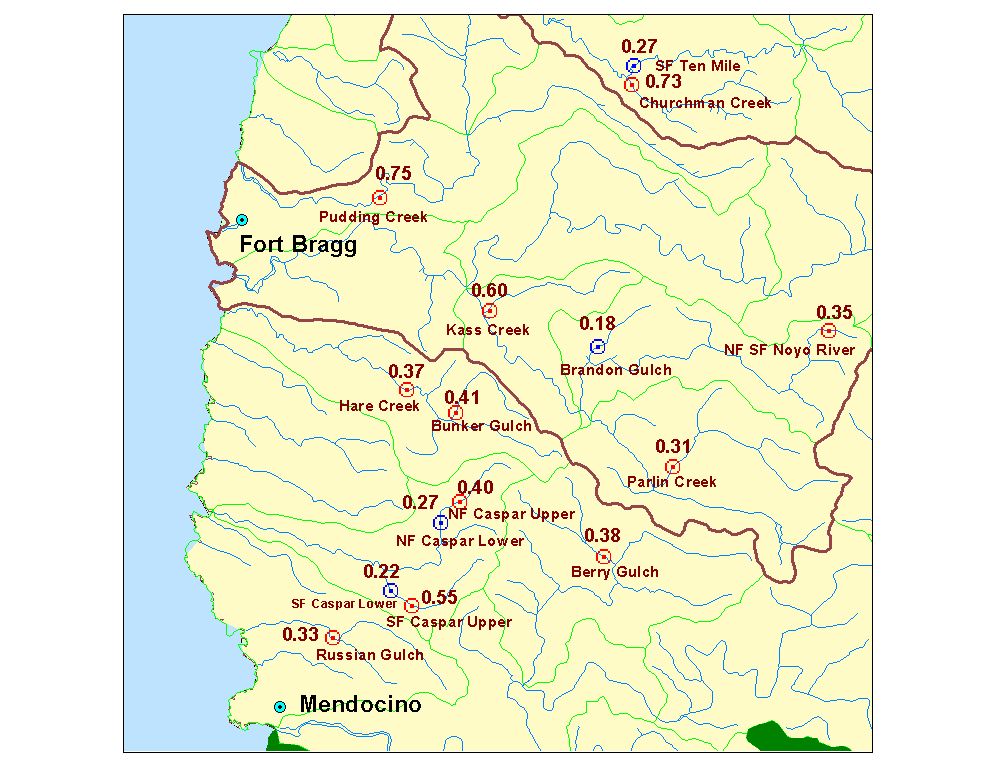

The map above shows fifteen V* study sites from within Hydrologic Unit 13 near the Ten Mile River. Knopp (1993) collected data on the amount of fine sediment in pools, pebble counts, large wood and pool frequency statistics for 60 north coast streams. V* values are shown in decimal percent (0.27 = 27% of the residual pool is filled with fine sediment). Blue bulls-eyes are for sites below the TMDL target value of 0.27, while red bulls-eyes are for sites above the TMDL target value.




To learn more about this topic click here
