| Area | South Fork Battle |
| Topic | Tour: SF Powerhouses and Diversions |
The South Fork Battle Creek has three major diversions: Coleman, Inskip and the South Diversion Dams. Additional water is captured to feed the South Powerhouse from Soap Creek, upper Ripley Creek and the North Fork Battle Creek through the Cross Country Canal. Water for the Inskip Powerhouse comes from not only from Inskip Diversion but the lower Ripley Creek and Eagle Canyon Canal from the North Fork.
This aerial photograph shows the Coleman Diversion Dam and the Inskip Powerhouse. This dam may be removed to facilitate fish passage and to help augment water supply for winter run and spring chinook restoration efforts. Photo courtesy of Harry Rectenwald, CDFG.
This photo shows the Coleman Diversion Dam, the South Fork Battle Creek and the Coleman Canal on the far side of the dam. Photo courtesy of Thomas R. Payne and Associates. 1988.
Coleman Diversion Dam. Photo courtesy Thomas R. Payne and Associates. 1988.

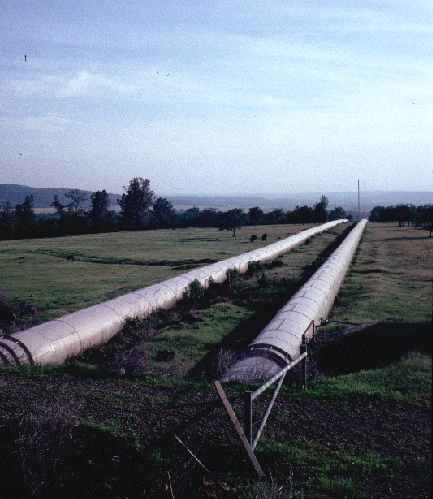

The Coleman Canal penstocks. Photo courtesy Thomas R. Payne and Associates. 1988.
This photograph shows the Coleman Canal running parallel to the South Fork Battle Creek which is out of the photo to the right. Photo from Manton to Red Bluff road in October 1998 by Pat Higgins.
Coleman Canal at an unknown location. Photo courtesy of Harry Rectenwald, CDFG.
Click on image to enlarge (181K).
Click on image to enlarge (68K).
Click on image to enlarge (41K).
Click on image to enlarge (32K).
Click on image to enlarge (18K).
Click on image to enlarge (47K).
Click on image to enlarge (29K).
